HORIZON HD
S2 |
 |
the latest generation Meter for
the Global uptake of High Definition broadcasts in DVB-S, DSS and DVB-S2.
Generous storage of up to 256 transponders and the flexibility of 16 user
customisable selections for on-site unique carriers. The transmission
signals can be isolated with this precise and accurate installation tuner.
This Meter comes built with a long life high-output Lithium-Polymer
rechargeable battery pack, supplying 15V DC at 2400 mAh, capable of
providing more than 6 hours continuous run time. The
menu template is
clear and simple and includes features such as Spectrum Display,
Constellation Diagrams, Bit Error Rate, Carrier-to-Noise and true MER
expressed in dB, all in an intuitive and easy to use format. It comes as a
complete kit with mains charger, car charger and USB cable for data transfer
and satellite settings update. |
|
HORIZON HD-STM |
 |
this Combination Satellite and
Terrestrial Meter offers a much-needed solution for the requirements for
both Home and Commercial installations. It is a lightweight, simple to use
yet professional instrument for perfectly aligning satellite dishes and
digital antenna. Clear
and simple onscreen menu, which can guide you or allows you to customize
for your own typical use and settings, reducing the overall testing time.
The Terrestrial menu can sort and suggest transmitters via postcode, region
or even favourites; these can be compared with other transmitters to ensure
a best fit for the client. The Satellite installation can identify channels
and report back the readings in a real-time non calculated (pre-BER/MER) as
well as post-BER, which is of great assistance should the channel strength
vary at different times of the day. Onscreen spectrum analysis, Data Logging
and powered DiSEqC motor commands are some of the many other features that
make this Meter a formidable and reliable tool for installation
|
|
HORIZON HD-TM plus |
 |
includes features found on
higher end test and installation equipment. The simple display of Signal
Strength (RF Level) as well as pre and post-BER, CODFM Signal Display
indicator (PASS/FAIL) reports immediate reception information. THE QPSK/QAM
Constellation Diagram makes detailed diagnosis of the Digital Terrestrial
signal. The Data Logging feature enable you to create a record of your own
installations for uploading to your PC. Up to 64 Terrestrial Transmitter can
be stored by creating you own preferred list. Rapid access and recall of the
last selection used for use on multiple installations. It comes complete
with mains charger cable, in car and USB lead for data transfer. |
|

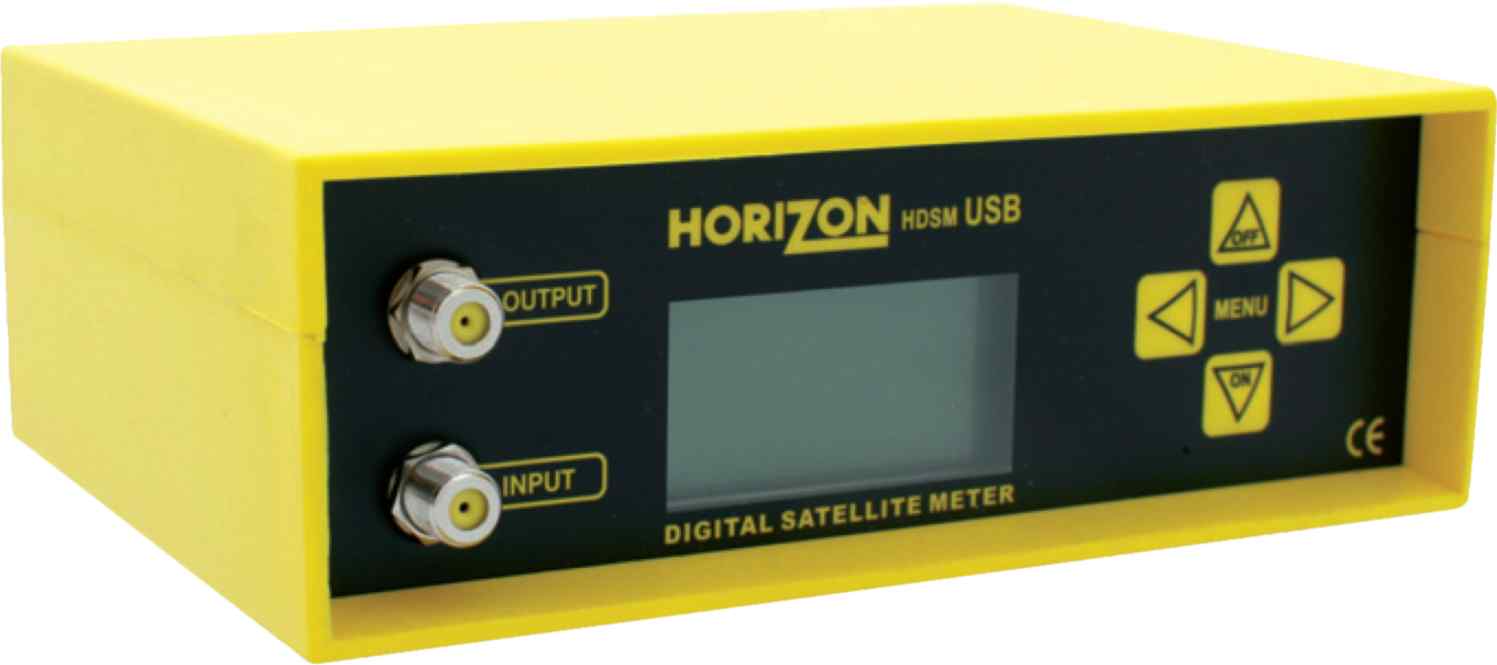

HORIZON HD-SM usb plus |
 |
brings you a clear and easy to
use spectrum analyzer. The QPSK constellation diagram makes detailed
diagnosis of digital satellite signals simple. The new Data Logging feature
enables you to create a record of your own installations for upload to your
PC. Up to 64 satellite selections can be stored by creating your own
preferred list. Rapid access and recall of the last selection used make the
HDSM USB+ even easier to use on multiple installations. It comes complete
with mains charger cable, in car charger and USB lead for data transfer. |
|
HORIZON HD-CM |
 |
offers an easy to use, fast, accurate and
affordable solution to precise downstream measurement and fault diagnosis.It
is fast on start up and recognition of feed information with its Rapid Scan
of downstream centre frequencies, with an easy to read screen, Logging
Report and Slope comparison.Fully compliant to ITU-T J.83 standards for
DVB-C applications covering Annex A, B & C, as well as multi-lingual
support, it
includes up to
120 AC or DC Volt input
protection and measurement system,
Bit Error analysis, Carrier-to Noise and true MER expressed in
dB, all in an intuitive and single button navigation.The HD-CM comes as a
complete kit with mains charger, car charger and USB cable for data
transfer, holding up to 20 channel plans, selectable input reference points
and 500 data logging entries. |
